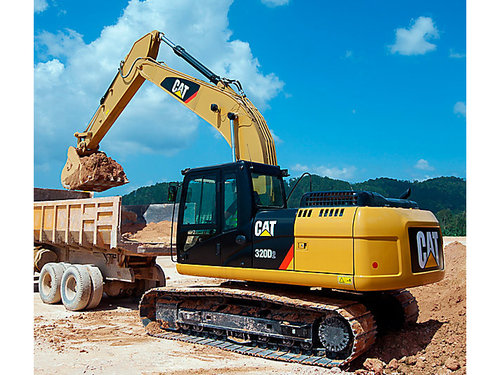

Cat 320D/D L Series 2 Hydraulic Excavator

Cat 320D/D L Series 2 Hydraulic Excavator
Cat 320D/D L Series 2 Hydraulic Excavator
Product Code : 320D/D L Series 2
Brand Name : GMMCO
Product Description

Overview

The Cat 320D/D L Series 2 Hydraulic Excavator incorporates innovations to improve your job site efficiency through low owning and operating costs, excellent performance, and high versatility.

Engine

Units:

Engine Model Cat® C7.1
Net Flywheel Power 106.0 kW
Bore 105.0 mm
Stroke 135.0 mm
Displacement 7.01 L
Engine Power - ISO 14396 112.5 kW
Net Power - SAE J1349 106.0 kW

Weights

Operating Weight 22390.0 kg
Operating Weight (ISO 6016): Long Undercarriage - Maximum Operating Weight 22390.0 kg
Operating Weight (ISO 6016): Long Undercarriage - Minimum Operating Weight 21680.0 kg
Operating Weight (ISO 6016): Standard Undercarriage - Maximum Operating Weight 21690.0 kg
Operating Weight (ISO 6016): Standard Undercarriage - Minimum Operating Weight 21040.0 kg
Operating Weight - Long Undercarriage 21 680 kg-22 390 kg (47,800 lb-49,360 lb)
Operating Weight - Std. Undercarriage 21 040 kg-21 690 kg (46,390 lb-47,820 lb)

Service Refill Capacities

Fuel Tank Capacity 410.0 L
Cooling System 25.0 L
Engine Oil 22.0 L
Final Drive (each) 8.0 L
Hydraulic System (including tank) 260.0 L
Hydraulic Oil 138.0 L
Swing Drive (each) 8.0 L

Swing Mechanism

Swing Speed 10.9 RPM
Swing Torque 61.8 kN·m

Drive

Maximum Drawbar Pull 205.0 kN
Maximum Travel Speed 5.4 km/h

Hydraulic System

Pilot System - Maximum Pressure 3900.0 kPa
Boom Cylinder - Bore 120.0 mm
Boom Cylinder - Stroke 1260.0 mm
Stick Cylinder - Bore 140.0 mm
Stick Cylinder - Stroke 1504.0 mm
B1 Bucket Cylinder - Bore 120.0 mm
B1 Bucket Cylinder - Stroke 1104.0 mm
Main System - Maximum Flow (Total) 404.0 L/min
Maximum Pressure - Equipment 35000.0 kPa
Maximum Pressure - Equipment (Lift mode ON) 36000.0 kPa
Maximum Pressure - Swing 25000.0 kPa
Maximum Pressure - Travel 35000.0 kPa
Pilot System - Maximum Flow 32.4 L/min (1,977 in3/min)
Swing System - Maximum Flow 202.0 L/min
